Honeycombing in Concrete: Causes and Repair Methods

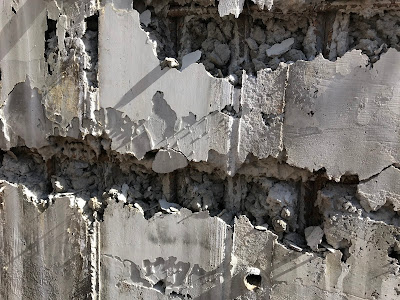

Honeycombing in concrete walls refers to a defect characterized by voids and exposed aggregates, as seen in the images. This defect compromises the structural integrity, durability, and aesthetics of the concrete.

Honeycombing in concrete

Below, outline the primary causes of honeycombing, methods for repair, and relevant standards as per ACI, IBC, and other industry-specific guidelines.

Causes of Honeycombing

1. Improper Vibration: Uneven vibration during concrete placement leads to poor consolidation, trapping air pockets within the mix.
2. Poor Workmanship: Incorrect handling of concrete, including failure to ensure proper placement in corners and tight areas, contributes to honeycombing.
3. Concrete Mix Design: A poorly proportioned mix with insufficient fines or improper water-cement ratio results in segregation and voids.
4. Congested Reinforcement: Closely spaced reinforcement bars obstruct the flow of concrete, leading to insufficient compaction and the formation of voids around the reinforcements.
5. Formwork Issues: Gaps or misalignments in the formwork allow the concrete to leak, leaving voids.



   Honeycombing in concrete

Repair Methods for Honeycombing

1. Assessment: Evaluate the depth, extent, and severity of honeycombing to determine the required repair method. Non-destructive testing (NDT) methods such as ultrasonic pulse velocity or impact echo testing may be used.
2. Surface Preparation:
• Remove all loose, weak, and delaminated concrete using mechanical tools or high-pressure water jets.
• Clean the surface thoroughly to remove dirt, grease, and laitance.
3. Application of Repair Material:
• For shallow honeycombing (<25 mm depth): Use polymer-modified cementitious mortars.
• For deeper areas (>25 mm depth): Use high-strength, non-shrink grout or concrete patches, ensuring proper bonding agents are applied before placement.
• Epoxy injection may be considered for voids affecting structural integrity.
4. Curing: Ensure proper curing of the repaired area to achieve desired strength and durability. Moist curing or curing compounds may be used.

Standards and Guidelines for Repair

1. American Concrete Institute (ACI):
• ACI 301 “Specifications for Structural Concrete”: Emphasizes proper placement and consolidation of concrete.
• ACI 546R “Guide to Concrete Repair”: Provides detailed guidelines for assessing and repairing defects like honeycombing.
2. International Building Code (IBC):
• IBC 2021 mandates that concrete structures adhere to ACI specifications and requires thorough inspection and approval of any repair work.
3. Project-Specific Standards:
• Many projects, such as those by Saudi Aramco, require adherence to stringent QA/QC procedures for concrete placement and repair, aligning with both ACI and project-specific guidelines.

Preventive Measures

1. Use a properly designed concrete mix with adequate fines and a workable consistency.
2. Ensure proper vibration and consolidation during placement, particularly in congested reinforcement areas.
3. Inspect and align formwork to prevent leakage or deformation.
4. Train workers in best practices for concrete handling and placement.

By following these guidelines, honeycombing can be effectively repaired and prevented, ensuring the longevity and performance of concrete structures.
